Factory Second Folding TMP (Under Tabletop) – SILVER COLOR

$85.00

Details & Specifications for FACTORY 2nd Folding TMP - Silver color

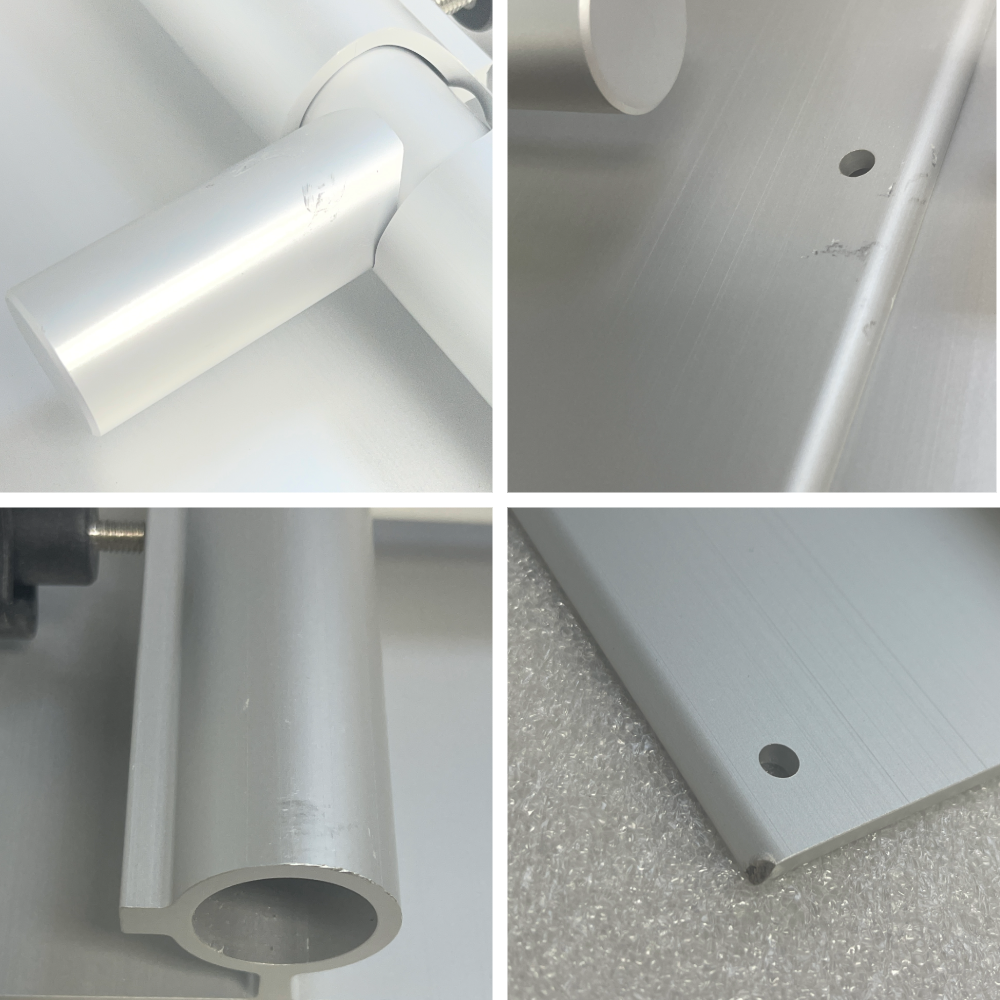

Factory Second Parts - May contain scratches and blemishes. These are NEW parts & the flaws will not affect the function of the part.  Please see photos in listing for examples of markings.

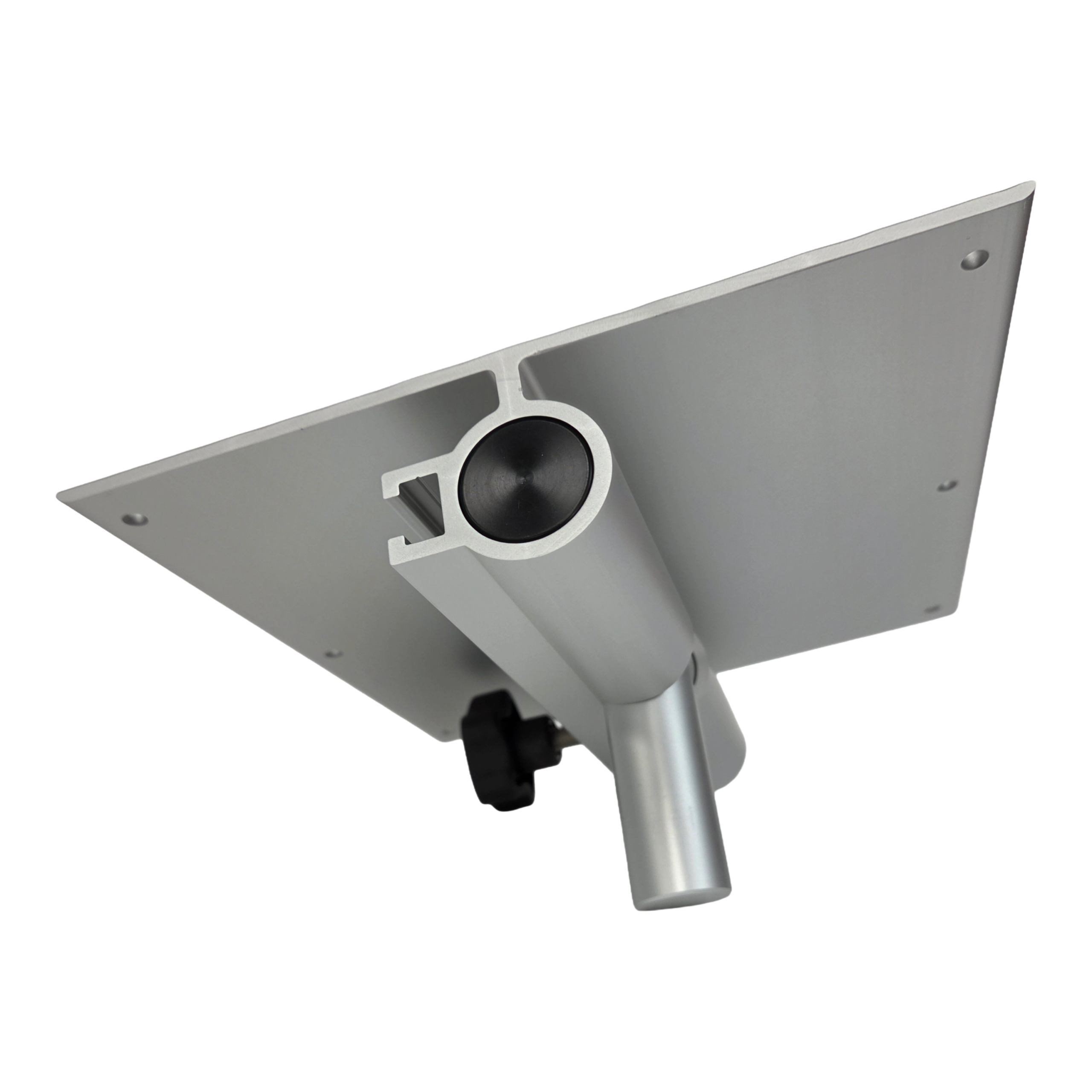

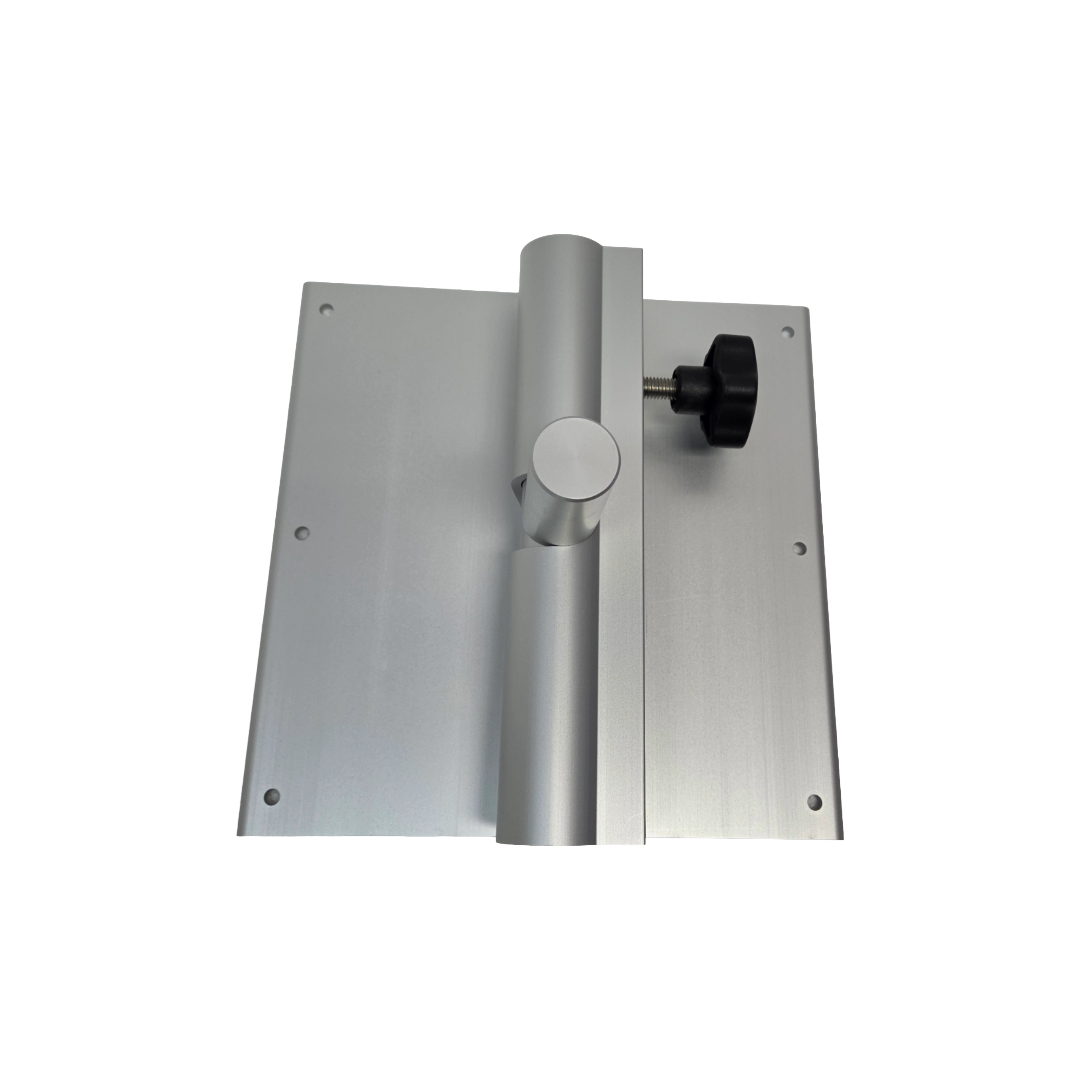

Folding Table Mounting Plate (TMP) - (Not Available in Black)

  • Comes complete (with tap & knob installed)
    • Tighten knob to secure tabletop at desired angle.
    • Loosen knob to reposition / fold tabletop.
    • Tap can be tightened by using a 6 mm Hex Key / Allen Wrench to tighten screw insert.
      • To access the screw insert, rotate the tap down.
  • TMP Caps DO NOT fit this style TMP
  • 7 7/8" x 7 7/8" (3 3/34" high with tap)
  • Supports tabletop up to 24" x 36"
  • Supports up to 40 lbs (This includes the weight of the tabletop plus anything placed on top of it.)
  • Use #8 pan headed screws (NOT INCLUDED) to install to the tabletop.  Screws must be installed at least 1/2 the depth of the tabletop for stability reason, using caution so they don’t protrude through the tabletop.

PLEASE NOTE: We do not have the ability to customize the Lagun Table Leg System beyond our current options. We also do not have any variations of any of the accessories listed on our website. Should you choose to modify any part of the Lagun Table Leg System or its installation, it will void your warranty. The Lagun Table Leg System is NOT compatible with the round tube style table leg, as the system is only as strong as the bracket installation.

CAUTION!!  The "Original Lagun" parts are NOT compatible with the knockoff systems.
